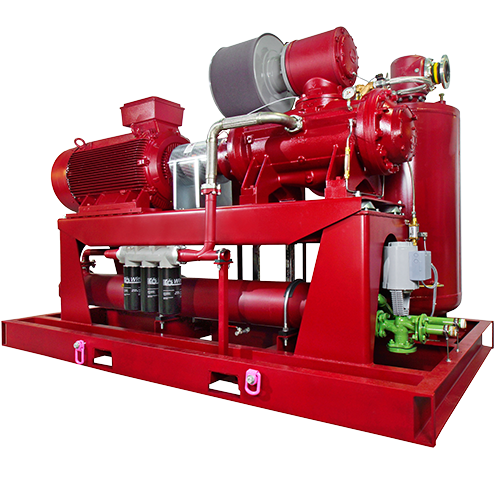

Air-cooled or water-cooled vane compressor RO L 170-460

Air-cooled or water-cooled rotary vane compressor.

  • Capacity up to 3,000 m³/hr
  • Sizes: 170, 230, 300, 370, 460

Technology

  • Maximum compression
  • Final pressure from 2.0 to 10 bar (g)
  • Compressor designed for optimum energy efficiency at the specified operating point
  • Direct drive via coupling
  • Low residual oil content: 0.8 to 3 mg / m³
  • Maximum reduction of residual oil content to 0.003 mg / m³ using post-filters
  • Frequency between 30 and 60 Hz
  • Limp-home capability
  • Single shaft: simple and rugged design, few rotating parts
  • Low rotational speed of 1,480 rpm
  • Low noise and vibration
  • Small footprint
  • Foundation-free installation

Cost Efficiency

  • High efficiency at high availability
  • Low energy consumption
  • Exceptional safety standard
  • Optional heat recovery
  • Up to 100,000 operating hours without overhaul
  • Long service life of bearings and rotors
  • Bearings can be changed on site
  • Easy to install

Highlights

  • Best choice for low pressure applications in continuous mode
  • Lowest total cost of ownership - get in touch with us if you want to know more !

Service

Service and maintenance are costly and time consuming necessities. To keep your costs down we offer hands-on workshops for your technicians to empower them to carry out service fast and efficiently at your plant. Successful attendance of our in-depth trainings for ATEX machines is rewarded with a certificate. If your machine actually breaks down we provide fast and efficient support from the factory.

Applications

Mostly used in low pressure applications like bottle manufacturing and pneumatic conveying.
